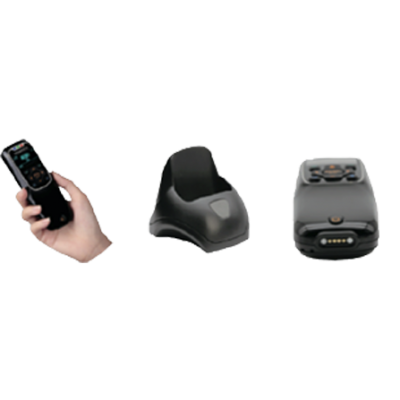

CS-3690 1D
    Lightweight programmable data terminal

    STOCKTAKE HELPER

    CS3690-1D provide simple interface to allow one
    hand operation.

    In addition, CS3690-1D able to read all common
    1D barcodes on printing material and with reliable
    IP65 seal to ensure the quality for the product.

    -Simple and user friendly interface
    -Ergonomic and stylish design
    -Magnetic USB communication cable, improve durability
    -OLED screen technology for energy-efficient.
    -Decode all major 1D barcode symbology
    -IP65 ensures high reliability and durability
    -Multiple 1.2 meters drops to concrete
    -SDK available for C-Language
    -Compatible with Windows, Android and iOS
    ดาวน์โหลดไฟล์สนับสนุน
    รายละเอียด

    -

    Specification
    Working rangeBluetooth:30m (line of sight), Wi-Fi:100m (line of sight)
    Radio linkBluetooth: 2-4-2-5GHz, Bluetooth 4.0/3.0/2.1+EDR, Class 2 Wi-Fi: 2.4GHz, compliant with Wi-Fi lEEE 802.11 b/g/n protocol standards
    InterfaceBluetooth: HID keyboard, SPP, BLE Wi-Fi: Station mode(STA), Access Point mode (AP) USB: USB HID keyboard, USB virtual COM, U Disk
    Data storage4MB for out of range batch: 250,000 barcodes (each barcode is of 15 bytes) 8MB for data batch mode: 500,000 barcodes (each barcode is 15 bytes) 76MB for U Disk mode: 5,000,000 barcodes (each barcode is of 15 bytes)
    Keyboard layoutUSA、Turkish F/Q、French、Italian、Spanish、Slovak、Denmark、Japanese、German
    DimensionL x W x D: 125.0 × 46.0 × 31.0 mm
    Weight115g
    Case material & ColorABS, Grey/Black/White/Customization
    Input Voltage5±5%V
    DisplayOLED display (128 x 64) with LED backlight
    Battery1900 mAh Lithium-ion battery | Charge time: Fully charged (>80%) in 4 hours
    Operating currentBluetooth: 4 mA(sleeping), 75 mA(working), 135 mA(scanning) Wi-Fi: 4 mA(sleeping)，127 mA(working)，187 mA(scanning)
    Standby time18 days
    Operating timeBluetooth: 22 hours, Wifi: 13 hours, based on 1 scan/5 seconds
    IndicatorBeeper, LED, Vibrator
    Scan engineuE966
    Light source650nm visible laser diode
    Scanning angle±50º, ±65º, ±35º (skew, pitch, roll)
    Decode capabilityUPC-A, UPC-E, EAN-13, EAN-8, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, Code 93,MSI/Plessey, UK/Plessey, UCC/EAN 128, GS1 DataBar(formerly RSS)variants, ISBN/ISSN
    Operating Temperature-20ºC to 55ºC / -4ºF to 131ºF (operating); -40ºC to 70ºC / -40ºF to 158ºF (storage)
    Humidity5% to 95% (non-condensing)
    SafetyEMC: EN55022, EN55024 ⎹ Electrical Safety: EN60950-1 Laser safety: EN60825-1, Class 1 ⎹ Illumination: 0~100,000LUX Sealing – IP65 ⎹ Drop Resistance – Multiple 1.2 m (4.9 ft.) drops to concrete
    Decoding Depth
    Narrow WidthDistance
    4 mil (9 chars)50 – 90 mm
    5 mil (12 chars)50 – 115 mm
    10 mil (3 chars)20 – 260 mm
    15 mil (3 chars)30 – 380 mm
    20 mil (3 char)45 – 490 mm
    30 mil (2 chars)40 – 700 mm
    55 mil (2 chars)80 – 850 mm
    * Performance vary by bar code printing quality and environmental conditions
