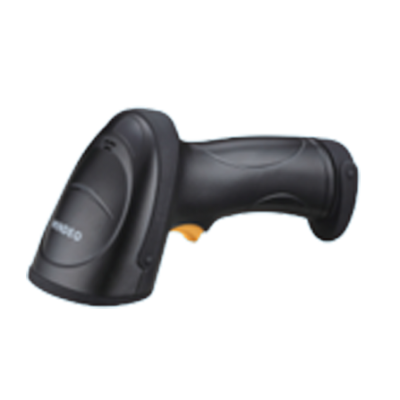

CS-6850
    Handheld Image Scanner

    Features

    -Megapixel image ensures better performance in decoding hard-to-read barcodes
    -Read all common 1D/2D barcodes from paper labels and electronic screens
    -Directly output Chinese charcaters contained in 2D barcodes
    -Support image auto-induction function
    -Plug-and-play interfaces enable the scanner to utoloze with differebt host devices
    -Optional vibartion mode is ideal for both noisy and quiet circumstances
    -Soft white auxiliary lighting and green aiming cursor deliver comfortable and scanning experience
    รายละเอียด

    -

    Specification
    Dimensions175mm (H) x 65mm (W) x 81m (D)
    Weight178g. without cable
    CableStraight 2.0 m
    Connector TypeRJ-45 phone jack connector
    IndicatorBeeper, LED, Bibrator
    InterfaceRS-232,PS/2, USB Keyboard, USB virtual COM
    Operating ModeHand-held, Auto-detection
    Programming MethodManual (reading special barcode)
    Program UpgradeOnline
    Input Voltage5± 0.25 VDC
    Current135 mA (standby), 475 mA (working)
    Performance Characteristics
    Image Size1280 x 800 pixels
    Field of ViewHorizontal: 42º, vertical:26.5º
    Scanning Angle±70º, ±75º, 360º (Skew, Pitch, Roll)
    Print Contrast20% minimum reflectance difference
    Decoding Capability1D : UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code32, Trioptic Code 39, Interleaved 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS), variants 2D : PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code
    Minimum ResolutionHD: 1D (Code 39): 3 mil, 2D (QR): 5 mil , SR: 1D (Code 39): 4 mil, 2D (PDF417):6.7 mil
    Decoding Depth*
    --High desity series
    (HD)    		Standard range series
    (SR)
    -3 mil Code 39 (3 chars)10 mm – 61 mm /
    -4 mil Code 128 (9 chars)5 mm – 88 mm55 mm – 106 mm
    -13 mil UPC (6 chars)0 mm -179 mm 0 mm – 335 mm
    -20 mil Code 39 (1 char)10 mm – 253 mm 8 mm -480 mm
    -5 mil QR (40 chars)7 mm – 65 mm/
    -6.7 mil PDF 417 (20 chars)0 mm – 65 mm37 mm – 145 mm
    -10 mil QR (20 chars)0 mm – 134 mm 0 mm – 168 mm
    -20 mil QR (20 chars)0 mm – 215 mm0 mm -345 mm
    Environmental Characteristics
    Temperature20º to 55ºC (-4º to 131ºF), operating; -20º to 75ºC (-4º to 167ºF), storage
    Humidity5% to 95% (non-condensing)
    SafetyEMC: EN550022, EN55024 | Electrical Safety: EN60950-1 Photobiological Safety: EN62471:2008 | lliumination: 0~100,000 LUX Sealing; IP50 | Drop Resistance : Withstands multiple 2.0 m (6.6 ft.) drops to concrete
