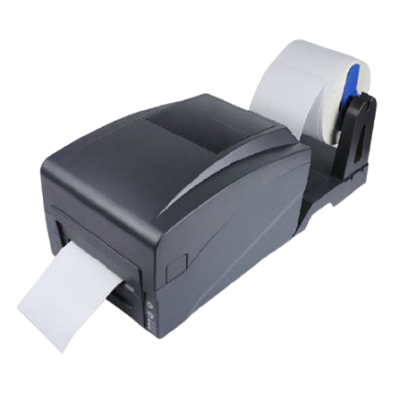

GP-1225Z
    Features:

    203 dpi high resolution
    2~6 inch/s high-speed printing
    Ribbon capacity up to 300M
    120mm paper exit chute, max.104mm print width
    Support black mark, 2D barcode printing
    Reflective and Transmissive sensors
    Multiple interfaces for different connectivity
    Adjustable media sensor; Automatic paper calibration function
    Thermal transfer printing technology achieve long lasting label
    Separate mechanism structure, thermal transfer and direct thermal printing
    Big gear and new structure of mechanism to enable paper feeding smoothly
    Automatic paper calibration and automatic temperature control
    Reserved label entrance from external holder that supports 8.4″OD industrial-grade
    รายละเอียด

    -

    Specification
    Print MethodThermal Transfer / Direct Thermal
    Pulse excitation1×10^8 Pluses
    Print Speed2~6 inch/s (51-152 mm/s)
    Print WidthMax. 104 mm (4.09″)
    Print LengthMax. 2286mm (90″)
    Dot Density203dots/inch (8dots/mm)
    Dot Size0.125×0.125mm (1mm=8dots)
    Print Head30KM
    InterfaceUSB+Parallel+Serial
    Physical MemoryFLASH: 8MB, SDRAM: 16MD
    Media SensorReflective and Transmissive Sensors (adjustable)
    Command setZPL II emulation
    Ribbon Characteristics
    Ribbon ODMax. 67mm
    Ribbon LengthMax. 300mm
    Ribbon Core Size1 inch (25.4mm)
    Ribbon WidthMax. 110mm, Min.30mm
    Ribbon Rolling Up MethodOutward Rolling
    Media Characteristics
    Media Roll OD127mm (5″)
    Media TypeContinuous, black mark, gap, punched hole, Fan fold and more labels
    Media Rolling Up MethodPrinting side outward rolling
    Media WidthMax. 120mm (4.72″) Min.30mm (1.18″)
    Media ThicknessMax. 0.254mm (10mil) Min. 0.06 (2.36mil)
    Media Roll Core Size25.4mm~38mm (1″~1.5″)
    Media GapMin. 2 mm (0.09″)
    Label Length10~2286 (0.39″~90″)
    BarCode/Fonts/Graphics Symbologies
    Enlargement&Rotation1~10 time enlargement in both directions; 0°, 90°, 270°, 360° rotation
    Character SizeFont 0 ~ font 8
    1D BarcodeCode39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, china POS, ITF14
    2D BarcodeQR code
    Graphics ProcessingSupport BMP/PCX/BAS files
    Editing SoftwareNicelabel SE, Bartender Lite, Label Shop
    Operating Characteristics
    Power supplyInput: AC 110V/240V
    Output: DC24V/2.5A, 60W
    Operation ConditionTemperature: 5~40℃(41~104°F)
    Humidity: 20~90%RH
    Storage ConditionTemperature: -25~55℃(-10~140°F)
    Humidity: 20%~93%RH
    Physical Characteristics
    Printer Dimensions278x210x175(WxDxH)
    Printer WeightApprox. 2.19KG
    Accessories
    Accessories
    External Media HolderStandard
