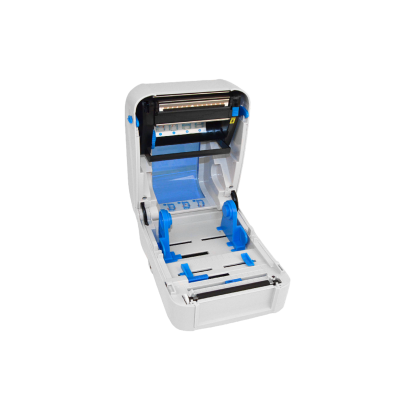

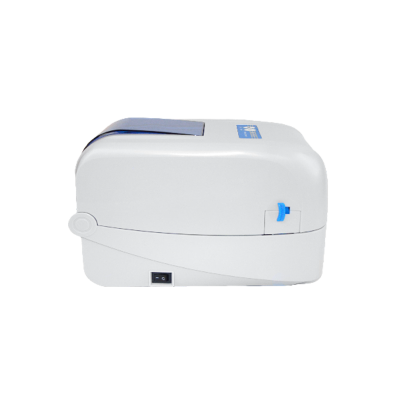

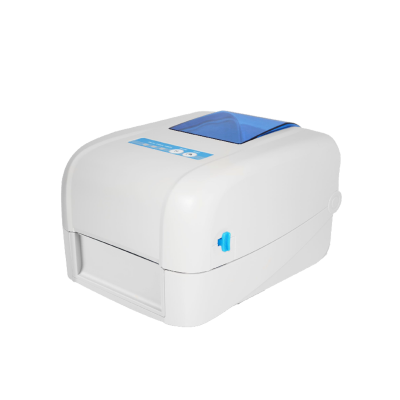

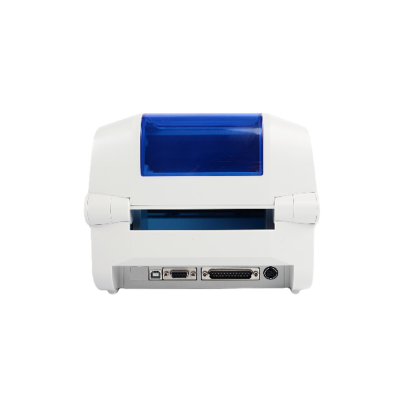

GP-1824
    Unique design, rugged and durable printer
    300 meters large ribbon capacity
    Thermal transfer and direct thermal printing technology
    120mm(4.72inch) paper exit fits for max.104mm print width
    External holder optional for 8.4″ OD industrial-grade media rolls
    Support black mark, 2D barcode printing
    Auto cutter Optional
    รายละเอียด

    -

    Specification
    Print MethodThermal Transfer / Direct Thermal
    Print Resolution203 dpi
    Print Speed2~6 inch/s (51-152mm/s)
    Print WidthMax. 104mm (4.09″)
    Print LengthMax. 2286mm (90″)
    Dot Density203dots/inch (8dots/mm)
    Dot Size0.125×0.125mm (1mm=8dots)
    Print Head50KM
    InterfaceUSB+Parallel+Serial (standard); USB+Parallel+Serial+Ethernet (optional); USB+Bluetooth (optional), USB+WIFI (optional)
    Physical MemorySDRAM: 8MB, FLASH: 4MB
    Media SensorReflective and Transmissive Sensors (adjustable)
    Command setStandard TSPL emulation, ZPL emulation opt
    Ribbon Characteristics
    Ribbon ODMax.67mm
    Ribbon LengthMax.300 m
    Ribbon Core Size1 inch (25.4mm)
    Ribbon WidthMax.110mm, Min.30mm
    Ribbon Rolling Up MethodOutward Rolling
    Media Characteristics
    Media Roll OD127mm (5″)
    Ribbon Rolling Up MethodOutward Rolling
    Paper Consumables
    Media Roll OD203mm(8″)OD
    MediaTypeContinuous, black mark, gap, punched hole, Fan fold and more labels
    Media Rolling Up MethodPrinting side outward rolling
    Media WidthMax.120mm (4.72″) Min.20mm (0.78″)
    Media ThicknessMax. 0.254mm (10mil) Min. 0.06mm (2.36mil)
    Media Roll Core Size25.4mm~38mm (1″~1.5″)
    Media GapMin. 2 mm (0.09″)
    Label Length10~2286mm (0.39″~90″)
    Auto Cutter
    Cutting typeFull cut
    Cutting Media Thickness0.06~0.25mm
    Service life1500000
    BarCode/Fonts/Graphics Symbologies
    Enlargement&Rotation1 ~10 times enlargement in both directions; 0°、90°、270°、360°rotation
    Character SizeFont 0 ~ font 8
    1D BarcodeCode39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits a
    2D BarcodeQR code
    Graphics ProcessingSupport BMP/PCX/BAS files
    Support BMP/PCX/BAS filesNicelabel SE
    Operating Characteristics
    Power supplyInput: AC 110V/240V Output: DC24V/2.5A, 60W
    Operation ConditionTemperature: 5~45℃(41~104℉), Humidity: : 25~85%
    Storage ConditionTemperature: -10~50℃(-10~140℉), Humidity: 10%~90%RH
    Physical Characteristics
    Printer Dimensions278x210x175mm (WxDxH)
    Printer WeighApprox. 2.1KG
    Accessories
    External Media HolderOptional
    Auto CutterOptional
