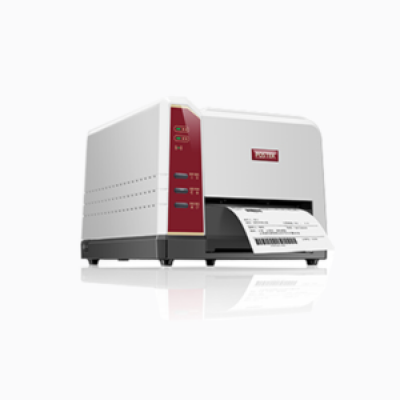

GP421/431
    Industrial Label Printer
    รายละเอียด

    -

    Specification
    Print MethodThermal Transfer / Direct Thermal
    Print Speed2~8 inch/s
    InterfaceUSB+Serial+Ethernet(Standard); Parallel port (optional); Bluetooth (Optional); WIFI (optional)
    Print Resolution203dots/inch(8dots/mm)
    Memory32mb RAM + 128mb ROM; Support Max.32GB TF card Expansion
    Dot size1mm=8dots
    Printing width104mm
    Max. Printing Length2286mm(90″)
    Genrals
    Printer Dimensions425x255x265mm(WxDxH)
    Weight9.65KG
    Working EnvironmentTemperature: 5~45℃(41~104℉), Humidity: 25~85%RH
    Storage EnvironmentTemperature: -10~50℃(-10~140℉), Humidity: 10%~90%RH
    Pulse excitation1×108 Pulses
    PowerInput : AC 110V/240V, Output : DC24V/2.5V, 60W
    Ribbon Consumables
    Ribbon ODMax. 81.3mm
    Ribbon Length450m
    Ribbon Core Size1inch (2.54mm)
    Ribbon WidthMax.110mm Min.30mm
    Ribbon Rolling Up MethodOutward Rolling
    Paper Consumables
    Media Roll OD203mm(8″)OD
    MediaTypePrinting side outward rolling
    Media Rolling Up MethodMax. 120mm (4.72″) Min.20mm(0.78″)
    Media ThicknessMax. 0.254mm (10mil) Min. 0.06mm(2.36mil)
    Media Roll Core Size25.4mm~38mm (1″~1.5″)
    Media GapMin. 2 mm (0.09″)
    Lebel Length10~2286mm (0.39″~90″)
    Note: If the length is less than 25.4mm (“), In order to tear off easily, label paper with perforation lines on the gap is suggested to be used
    Accessories
    AccessoriesExternal Media Holder Optional
