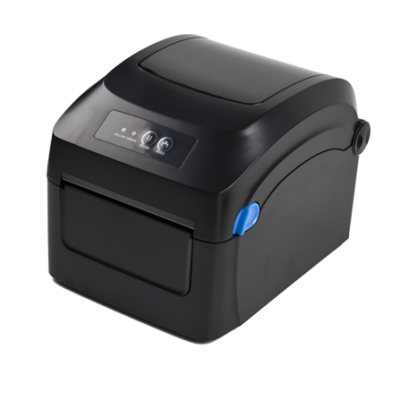

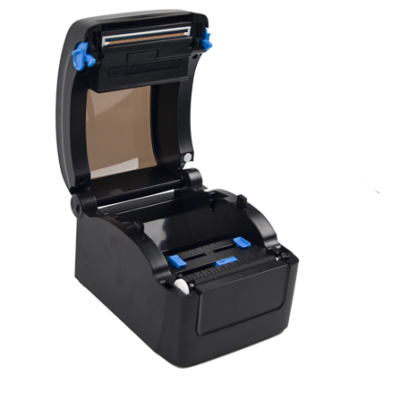

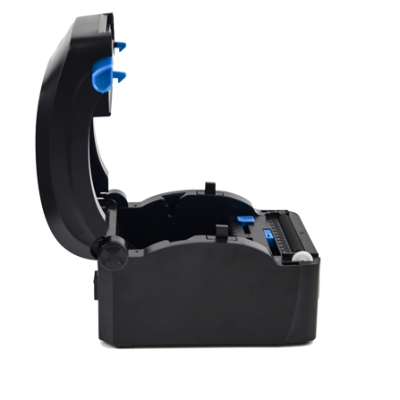

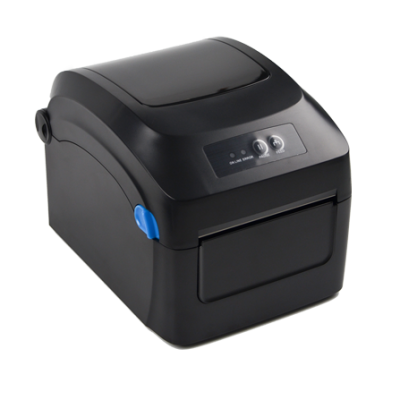

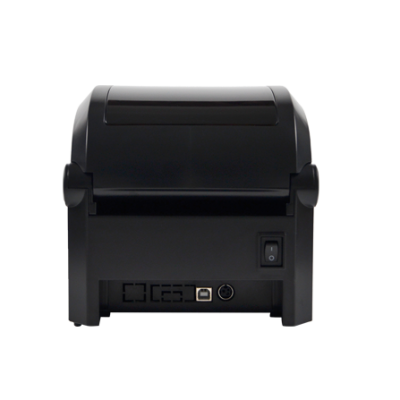

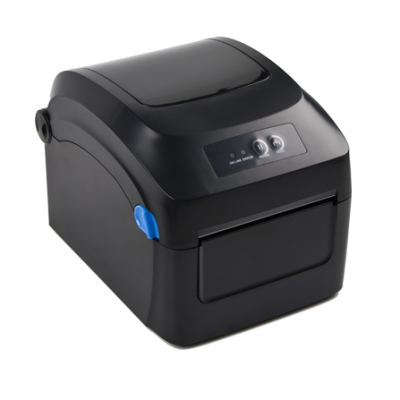

GP-S4232D
    Direct Thermal Label Printer

    203 dpi resolution
    Fast print speed up to 8 inch/s
    Support media width from 40mm to 120mm
    Support Thermal paper, Thermal label, Adhesive thermal paper etc.
    รายละเอียด

    -

    Specifications
    Print MethodDirect Thermal
    Print Resolution203 dpi
    Print Speed 2~8 inch/s (51-203mm/s)
    Print WidthMax. 104mm (4.09″)
    Print LengthMax. 2286mm (90″)
    Dot Density203 dots/inch (8 dots/mm)
    Dot Size0.125×0.125 mm (1mm)
    InterfaceUSB
    Memory4M flash, 8M sdram
    Media SensorReflective and Transmissive Sensors (adjustable)
    Command setTSPL emulation
    Media Characteristics
    Media Roll OD130mm(5″)
    Media TypeContinuous, black mark, gap, punched hole, Fan fold and more labels
    Media Rolling Up MethodPrinting side out ward rolling
    Media WidthMax. 0.254mm (10mil) Min. 0.06mm (2.36mil)
    Media Roll Core Size25.4 mm – 38mm (1″-1.5″)
    Media GapMin. 2 mm (0.09″)
    Label Length10-2286mm (0.39″- 90″)
    Barcode/Fonts/Graphics Symbologie
    Enlargement&Rotation1 – 10 time enlargement in both directions; 0°,90°,270°,360° rotation
    Character SizeFont 0 – font 8
    1D BarcodeCode39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, china POS, ITF1
    2D Barcode QR code
    Graphics ProcessingSupport BMP/PCX/BAS files
    Operating Charecteristics
    Power supplyInput: AC 110V 240V Output: DC24V/2.5A, 60W
    Operation conditionsTemperature : 5~45°C (41~104°F), Humidity: 25~85%RH
    Storage conditionsTemperature : -10~50°C (-10~140°F), Humidity: 10%~90%RH
    Physical Characteristics
    Printer Dimensions285*210*180mm(WxDxH)
    Printer WeightApprox. 2.1KG
